Keep VAE tiles overlapping on the out-of-memory retry (no more seam lines), and retry the encode too - #21
Conversation
When an untiled VAE decode fails, the retry tiled at half the latent per axis. For most sizes that is a tile one latent over half, which sd_tiling_calc_tiles turns into two tiles overlapping by 0 or 1 latent: the cross-fade has nothing to blend over and the tile edge shows as a hard line through the image (Qwen-Image-2.1 1184x864: 110 levels). get_tile_sizes now picks the nearest tile size whose tiles overlap by at least half the target (never under 2 latents), preferring smaller tiles so memory never grows. This also fixes the --vae-tiling path at the few sizes where it hit the same two-tile case (57..63 latents decode, 113..127 encode). The retry also halves the tiles again (down to 1/8 of the latent) when the first tiled attempt still does not fit, and an untiled VAE encode that fails is now retried with tiles the same way instead of failing the job.
|
You have reached your Codex usage limits for security reviews. Please try again later. |
![chatgpt-codex-connector[bot]](https://avatars.githubusercontent.com/in/1144995?s=60&v=4){kind=small}
There was a problem hiding this comment.
💡 Codex Review
Here are some automated review suggestions for this pull request.
Reviewed commit: 1a03bc768d
ℹ️ About Codex in GitHub
Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you
- Open a pull request for review
- Mark a draft as ready
- Comment "@codex review".
If Codex has suggestions, it will comment; otherwise it will react with 👍.
Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".
| auto overlaps_enough = [&](int size) { | ||
| int num_tiles; | ||
| float overlap_factor; | ||
| sd_tiling_calc_tiles(num_tiles, overlap_factor, small_dim, size, tile_overlap_factor, false); |
There was a problem hiding this comment.
When --circularx or --circulary is combined with VAE tiling, this helper still selects the replacement size using non-circular geometry. For example, a latent axis of 57 with the default tile size 32 is changed to 28: the previous circular layout visits offsets 0, 19, and 38 and has unit aggregate blend weight, while size 28 makes process_tiles_2d visit 0, 14, 28, 42, and 56 even though the calculation reports four tiles, causing 26 positions to receive up to approximately twice the intended weight. This corrupts the tileable output with a bright band, so circular state needs to be included in the sizing decision or this adjustment should be bypassed for circular axes.
Useful? React with 👍 / 👎.
There was a problem hiding this comment.
Fixed in ee5829c: get_tile_sizes now takes the circular flags and skips sd_tiling_seam_safe_tile_size on a circular axis, so those axes keep the tile size master used. Confirmed with a constant-input process_tiles_2d check: on a circular 57-latent axis the default 32 tile sums to unit weight, while the adjusted 28 tile does not.
Codex Review SummaryThis comment shows the latest Codex review activity on this pull request.
ℹ️ About Codex in GitHubYour team has set up Codex to review pull requests in this repo. Reviews are triggered when you
Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings. |
|
You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard. |
|
You have reached your Codex usage limits for code reviews. You can see your limits in the Codex usage dashboard. |
|
Reached Codex review convergence at oobabooga#7. |
|
After Codex's review on the fork I pushed one change, Tested
Normal sizes (1008, 1024 tiled), untiled renders and MiniMax-H3 renders are identical to master on CUDA, HIP, Vulkan (Linux and Windows) and Metal, and repeated renders are identical.
This PR has no GitHub CI checks of its own. It was built here on Linux (CUDA, CPU, HIP, Vulkan), Windows (MSVC) and macOS (Metal). Harness. |
There was a problem hiding this comment.
💡 Codex Review
Here are some automated review suggestions for this pull request.
Reviewed commit: 59c912afe3
ℹ️ About Codex in GitHub
Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you
- Open a pull request for review
- Mark a draft as ready
- Comment "@codex review".
If Codex has suggestions, it will comment; otherwise it will react with 👍.
Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".
| const float first_rel_size = encode ? 0.25f : 0.5f; | ||
| const float min_rel_size = 0.125f; |
There was a problem hiding this comment.
For ordinary image VAEs, get_tile_sizes multiplies relative encode tile sizes by encoding_factor = 2.0, but this shared floor stops retrying once rel_size_* reaches 0.125. Consequently encode retries use effective axis fractions of 0.5 and 0.25 and then give up, never trying the advertised one-eighth-sized tile; an encode that still OOMs at one quarter but would fit at one eighth therefore fails unnecessarily. The encode floor must account for the encoding factor, just as first_rel_size already does.
Useful? React with 👍 / 👎.
| while (latents.empty() && | ||
| sd::backend_fit::prepare_vae_retry_tiling(retry_tiling_params, false, true)) { | ||
| latents = first_stage_model->encode(n_threads, x, retry_tiling_params, circular_x, circular_y); |
There was a problem hiding this comment.
When image VAE tiling starts disabled and an encode OOM triggers this retry under circular_x or circular_y, configure_image_vae_axes has already enabled circular padding inside the VAE graph. This newly tiled call also passes the circular flags to process_tiles_2d, so every tile wraps both at the tiler level and internally within its own convolution graph. The explicit-tiling path avoids this by disabling the model's circular axis whenever an axis is split; the retry path needs the same reconfiguration or it produces artifacts at internal tile boundaries for circular img2img/control/reference encodes.
Useful? React with 👍 / 👎.
|
Reached Codex review convergence at oobabooga#7. |
2 participants
Problem
When
--vae-tilingis not passed and the untiled VAE decode runs out of memory,decode_first_stageretries with spatial tiling atrel_size 0.5, half the latent per axis (backend_fit.cpp,prepare_vae_decode_retry_tiling). For most sizes that is a tile one latent over half of the axis (round(dim / 2)), andsd_tiling_calc_tilesturns it into two tiles overlapping by2 * tile - dim= 0 or 1 latent. The smootherstep cross-fade then has nothing to blend over, so the tile edge shows as a hard line through the image. With Qwen-Image-2.1 (16x VAE) the edges also carry the VAE's border artifacts, so it is a broken band rather than a thin line.Examples of the retry geometry on master:
The same two-tile case is reachable from
--vae-tilingtoo, at the few sizes where the default 32-latent tile is just over half the axis: 57 to 63 latents on decode (Qwen-Image-2.1 992x992 overlaps by 2 latents) and 113 to 127 latents on encode (64-latent tiles).The encode side had no retry at all: an untiled VAE encode that runs out of memory fails the whole job (
vae encode compute failed).Change
sd_tiling_seam_safe_tile_size(runtime/tiling.cpp), applied per axis at the end ofVAE::get_tile_sizes: if the tile size the caller asked for would leave tiles overlapping by less than half the target overlap (or under 2 latents), use the nearest tile size that does not, trying smaller tiles first and never more than twice the requested size, so an explicitly small tile stays small. Sizes that already overlap enough are untouched, so the default--vae-tilinggeometry only changes at the sizes listed above.rel_size 0.5for its first attempt (now 36x26 instead of 37x27 at 1184x864, 3x3 tiles with about 0.47 overlap). If that still fails, it halves the tiles again, down to 1/8 of the latent, before giving up (an axis already below 1/8 keeps its size). Before, a failed first retry ended the job.encode_to_vae_latentsretries a failed encode the same way, on a copy of the tiling params so later calls are unaffected. Encode starts atrel_size 0.25because image VAE encode tiles are scaled up 2x inget_tile_sizes.Results
B200, one exclusive card per run, master (
1d02858, the build Studio pins; master only adds a CI commit) against this branch, same seed and prompt. The VRAM cap is real: a second process holds the rest of the card so the untiled decode's allocation fails and the retry runs. Seam score = the largest mean absolute difference along any row or column in a 64 px band, against the untiled decode of the same latent from the same binary (0 to 255 levels).--vae-tiling--vae-tiling--vae-tilingvae encode compute failed. This branch retries the encode with 64x64 tiles (3x3), then retries the decode twice, and finishes.Decode time (
decode_first_stage, seconds, including the failed untiled attempt):--vae-tilingpassed up frontThe retry is about 1 s slower than master's because it decodes 9 tiles instead of 4. It only runs after an out-of-memory failure.
Before / after

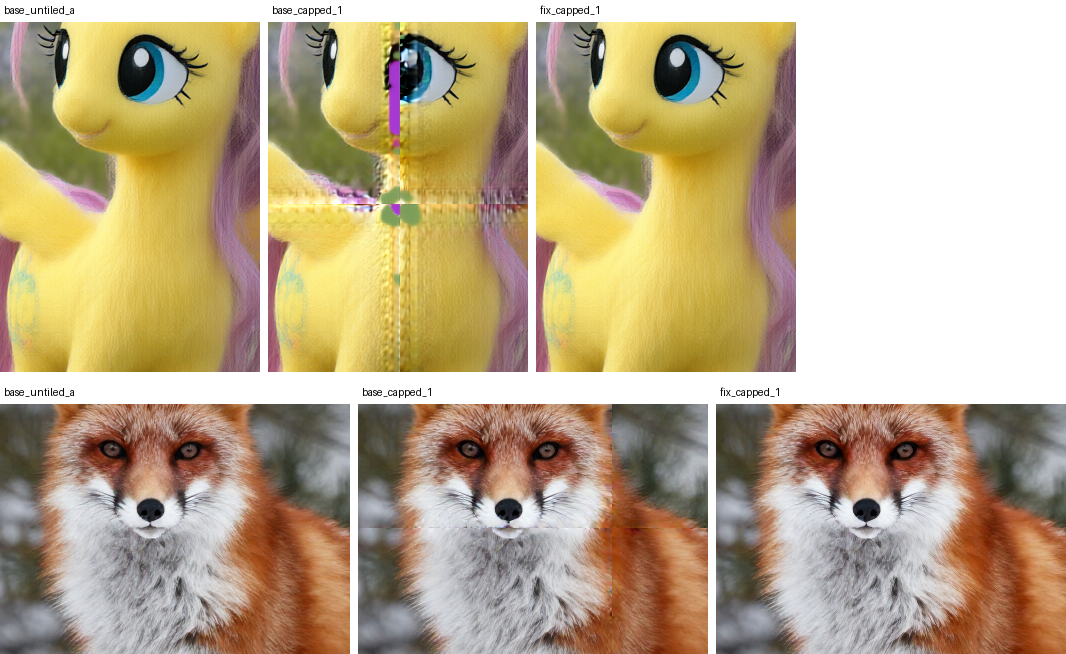

Out-of-memory retry under a VRAM cap. Left: untiled decode. Middle: master's retry (2x2 tiles, no overlap). Right: this branch (3x3 overlapping tiles). Top: Qwen-Image-2.1 Q4_K_M 1184x864. Bottom: Z-Image-Turbo Q4_K_M 1008x1008.
Tests
process_tiles_2dwith an identity tile function that adds a different constant to each tile, for every axis length from 8 to 256 latents and each geometry used here (retry at 0.5, 0.25 and 0.125 of the latent, encode retry, default 32-latent decode and 64-latent encode tiles). It checks that a constant input comes back unchanged (blend weights sum to 1) and that no step between neighbouring outputs is as large as the per-tile offset. On master it fails for 186 of 249 lengths with the 0.5 retry, 67 with the encode retry, and at 63 latents (default decode) and 127 latents (encode). With this PR it passes for all of them.sd-cli, no new warnings in the touched files.Validation on other hardware
vae encode compute failed); this branch retries the encode and the decode and finisheshipMallocfailure (6.3 GiB free)--vae-tilingZ-Image 496x496 (62 latents) on CUDA, HIP, Vulkan (Linux and Windows), MetalMerged with the MiniMax-H3 stack (#17 to #20), the only conflict is
src/runtime/tiling.h(both add a declaration; keep both). The combined tree gives the same retry and tiling output as this branch alone.Not covered
get_tile_sizes, so they only change at the thin-overlap sizes.binbcast.cu(GGML_ASSERT(s02 <= UINT32_MAX)) on master and on this branch alike. That is not an out-of-memory failure, so the retry does not run. It is not fixed here.
